e-SKYACTIV PHEV
WARNING: This page is about a different variant/trim than selected.
 Courtesy of MAZDA MOTORS CORP.
|
COMPONENT OPERATIONS

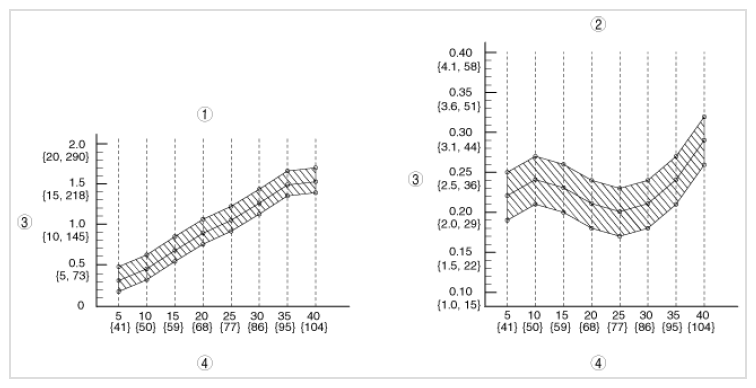

| Component no |
Refer to |
| 1 |
High pressure side |
| 2 |
Low pressure side |
| 3 |
Refrigerant pressure (MPa {kgf/cm2, psi}) |
| 4 |
Ambient temperature (°C {°F}) |
