Remove Passenger Side Front Splash Shield No. 2: Notes

WARNING: This page is about a different variant/trim than selected.

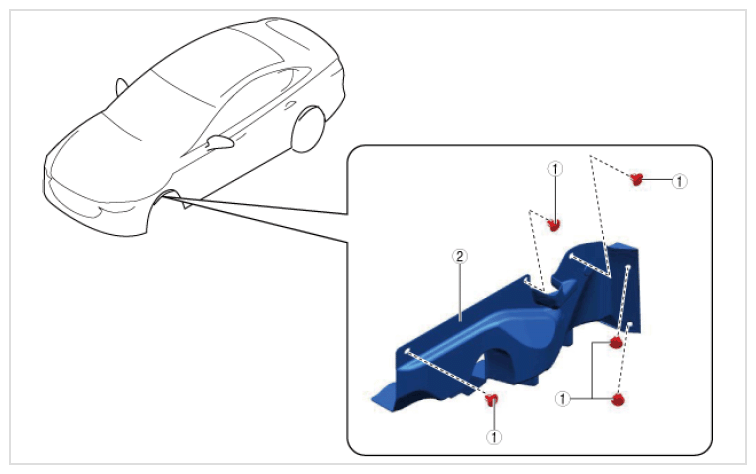

  1. Remove using the procedure shown in the figure below.
    • the figure below shows the left side (same as right side).
G16700601Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Fastener
2 Front splash shield No. 2
(See Front splash shield No. 2 removal note )
