Remove Front Under Cover No. 3

WARNING: This page is about a different variant/trim than selected.
  1. Remove using the procedure shown in the figure below.

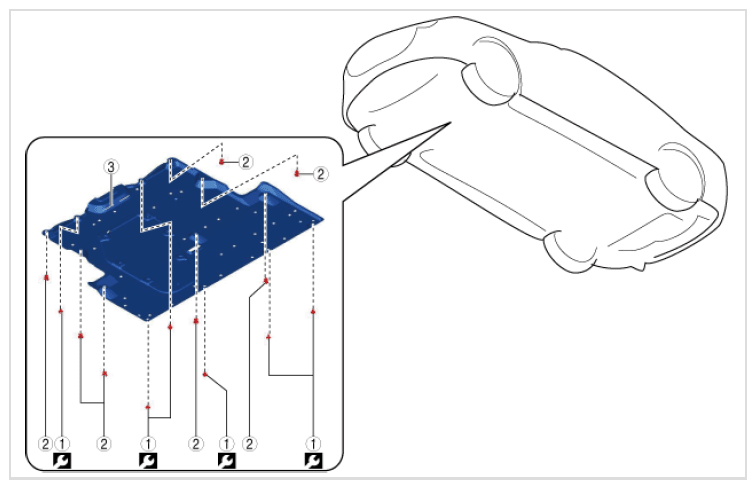

Fig 1: Front Under Cover No. 3 Bolt With Torque Specifications
G16700571Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Bolt 11 N.m {110 kgf.cm, 95 in.lb}
2 Fastener -
3 Front undercover No. 3 -
