Lower Engine Component 50 mm {2.0 in}: Notes
WARNING: This page is about a different variant/trim than selected.
- Remove in the order indicated in the table.

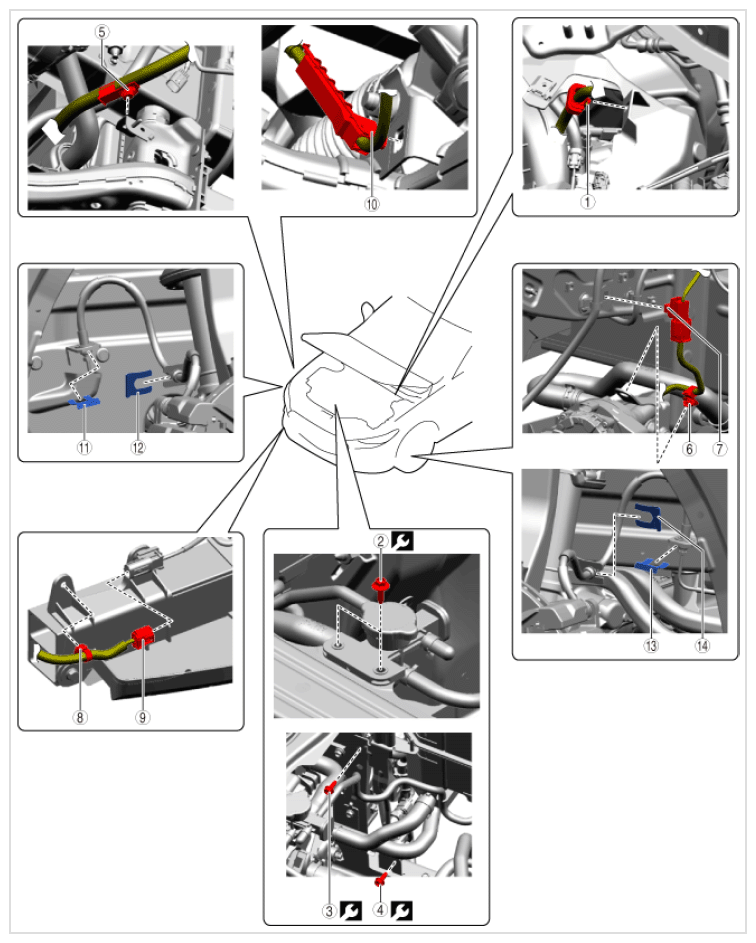

TIGHTENING TORQUE SPECIFICATIONS
| Step | Part name | |
|---|---|---|
| 1 | Clip | - |
| 2 | Bolt | 9.5 N.m {95 kgf.cm, 82 in.lb} |
| 3 | Bolt | 11 N.m {110 kgf.cm, 95 in.lb} |
| 4 | Bolt | 9.5 N.m {95 kgf.cm, 82 in.lb} |
| 5 | Clip | - |
| 6 | Clip | - |
| 7 | Clip | - |
| 8 | Clip | - |
| 9 | Connector | - |
| 10 | Clip | - |
| 11 | Clip | - |
| 12 | Clip | - |
| 13 | Clip | - |
| 14 | Clip | - |

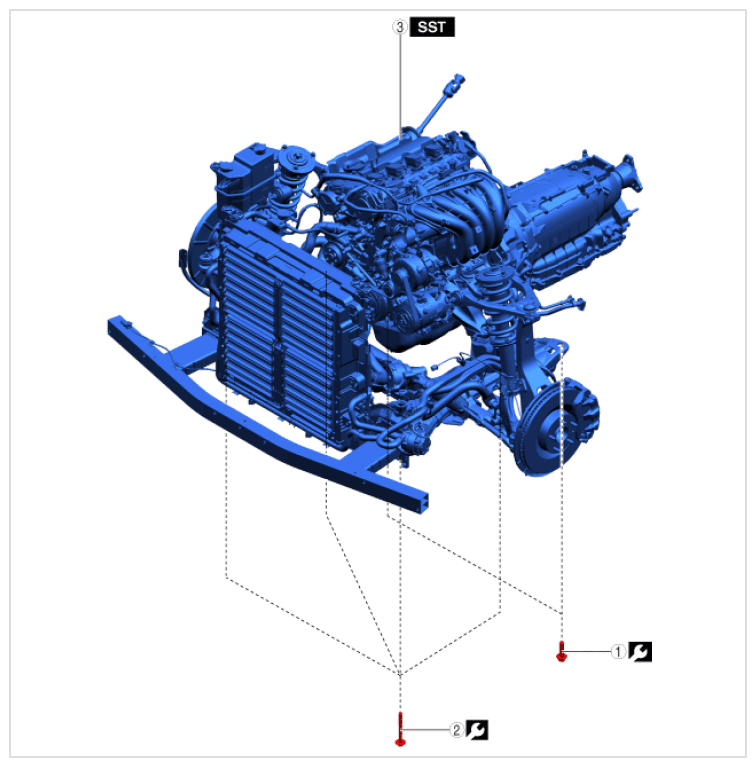

TIGHTENING TORQUE SPECIFICATIONS
| Step | Part name | ||
|---|---|---|---|
| 1 | Bolt (See LOWERING ENGINE COMPONENT 50 MM {2.0 IN} NOTE ) |
- | 210.5 N.m {21.45 kgf.m, 155.1 ft.lb} |
| 2 | Bolt (See LOWERING ENGINE COMPONENT 50 MM {2.0 IN} NOTE ) |
- | 82.5 N.m {8.4 kgf.m, 60.85 ft.lb} |
| 3 | Engine component (See LOWERING ENGINE COMPONENT 50 MM {2.0 IN} NOTE ) |
49 JP01 1A0 | - |
