Engine Compartment

WARNING: This page is about a different variant/trim than selected.

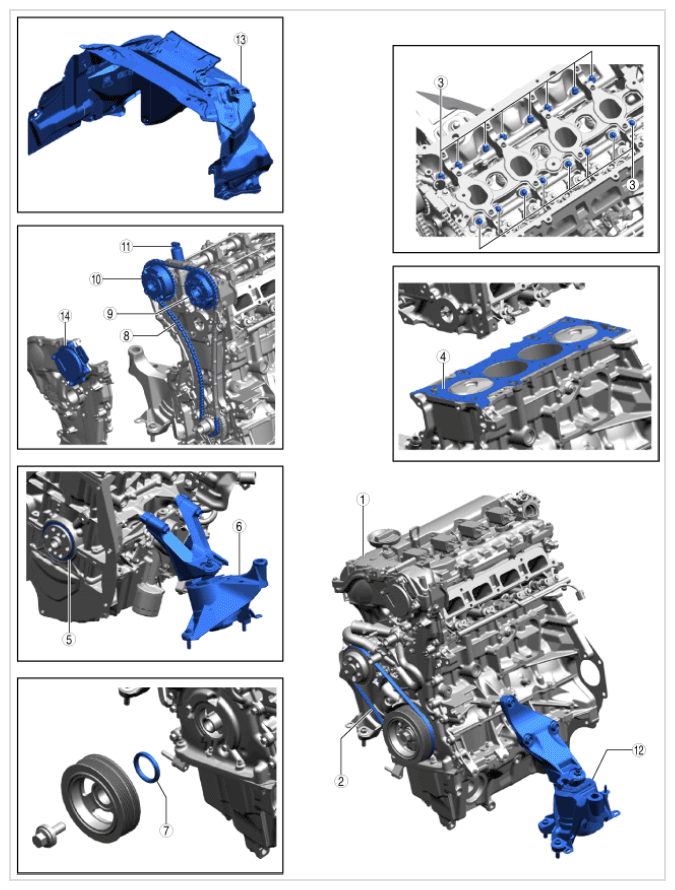

Fig 1: Engine Components Location

G16700529

Courtesy of MAZDA MOTORS CORP.

ENGINE COMPONENT OPERATIONS

Component no	Refer to
1	Engine (See ENGINE TUNE-UP [PYUL] ) (See COMPRESSION INSPECTION [PYUL] ) (See ENGINE REMOVAL/INSTALLATION [PYUL] ) (See ENGINE DISASSEMBLY/ASSEMBLY [PYUL] ) Short engine (See SHORT ENGINE REMOVAL/INSTALLATION [PYUL] ) Cylinder head cover (See CYLINDER HEAD COVER REMOVAL/INSTALLATION [PYUL] ) Cylinder head (See CYLINDER HEAD REMOVAL/INSTALLATION [PYUL] )
2	Water pump drive belt (See DRIVE BELT REMOVAL/INSTALLATION [PYUL] ) (See DRIVE BELT INSPECTION [PYUL] )
3	HLA (See HYDRAULIC LASH ADJUSTER (HLA) REMOVAL/INSTALLATION [PYUL] ) (See HYDRAULIC LASH ADJUSTER (HLA) INSPECTION [PYUL] )
4	Cylinder head gasket (See CYLINDER HEAD GASKET REPLACEMENT [PYUL] )
5	Rear oil seal (See REAR OIL SEAL REPLACEMENT [PYUL] )
6	Engine mount (RH) (See ENGINE MOUNT REMOVAL/INSTALLATION [PYUL] )
7	Front oil seal (See FRONT OIL SEAL REPLACEMENT [PYUL] )
8	Timing chain (See TIMING CHAIN REMOVAL/INSTALLATION [PYUL] )
9	Electric variable valve timing actuator (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION [PYUL] ) (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR INSPECTION [PYUL] )
10	Hydraulic variable valve timing actuator (See HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION [PYUL] )
11	Oil Solenoid valve (See ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION [PYUL] ) (See ENGINE OIL SOLENOID VALVE INSPECTION [PYUL] )
12	Engine mount (LH) (See ENGINE MOUNT REMOVAL/INSTALLATION [PYUL] )
13	Capsule construction (See CAPSULE CONSTRUCTION REMOVAL/INSTALLATION [PYUL] )
14	Electric variable valve timing motor/driver (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER REMOVAL/INSTALLATION [PYUL] ) (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER INSPECTION [PYUL] )
-	Capsule cover (See CAPSULE COVER REMOVAL/INSTALLATION [PYUL] ) (See CAPSULE COVER OPEN/CLOSE [PYUL] )
