Remove Water Pump: Notes
WARNING: This page is about a different variant/trim than selected.

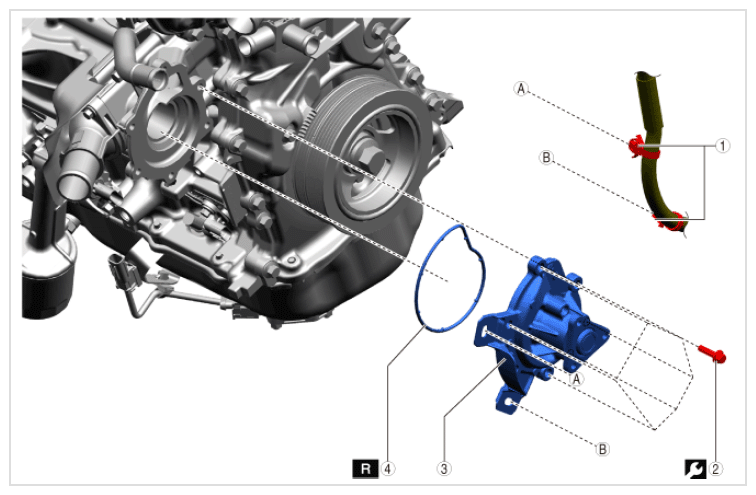

- Remove in the order indicated in the table.
TIGHTENING TORQUE SPECIFICATIONS
| Step | Part name | ||
|---|---|---|---|
| 1 | Wiring harness clip | - | - |
| 2 | Screw (See Screw installation note ) |
- | 9.5 N.m {97 kgf.cm, 84 in.lb} |
| 3 | Water pump | - | - |
| 4 | Gasket | Replacement part | - |
