Water pump drive belt removal note

WARNING: This page is about a different variant/trim than selected.
  1. Apply a cloth to the water pump drive belt as shown in the figure below.

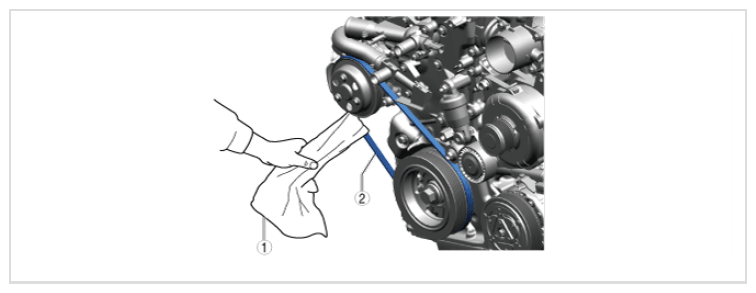

    G16700482Courtesy of MAZDA MOTORS CORP.
    COMPONENT OPERATIONS

    Component no Refer to
    1 Rag
    2 Water Pump Drive Belt
  2. Pull the cloth in the direction of the arrow and rotate the crankshaft pulley clockwise.

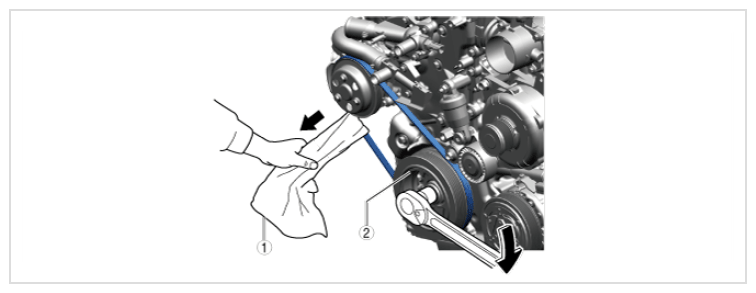

    G16700483Courtesy of MAZDA MOTORS CORP.
    COMPONENT OPERATIONS

    Component no Refer to
    1 Rag
    2 Crankshaft pulley
  3. Remove the water pump drive belt.
