Heater pipe component installation note

WARNING: This page is about a different variant/trim than selected.

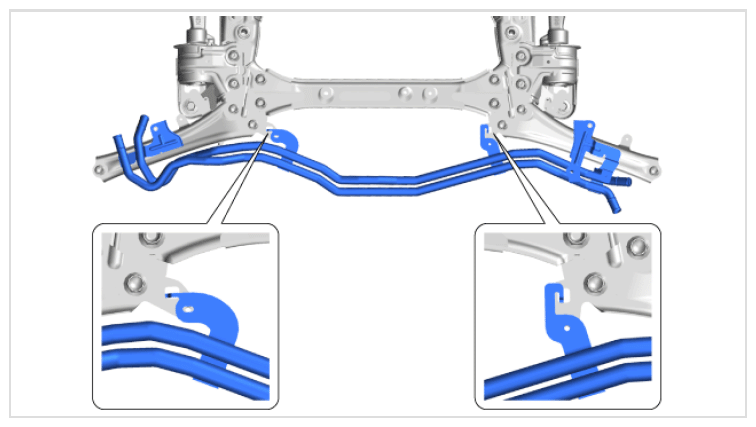

  1. Install the heater pipe component as shown in the figure below.
G16700356Courtesy of MAZDA MOTORS CORP.
