Remove Ignition Coils
WARNING: This page is about a different variant/trim than selected.

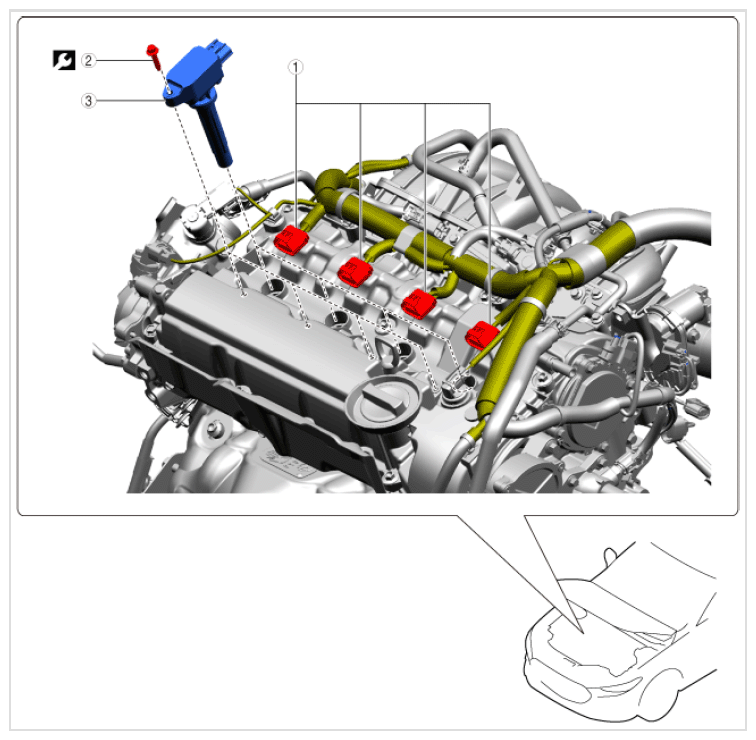

- Remove in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP. PART NAME DESCRIPTION
| Step |
Part name |
 |
| 1 |
Connector |
- |
| 2 |
Bolt |
9.5 N.m {97 kgf.cm, 84 in.lb} |
| 3 |
Ignition coil |
- |
