Remove High Pressure Fuel Pipe

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.

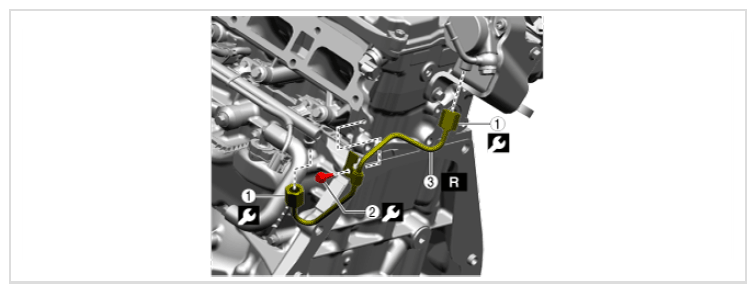

Fig 1: High Pressure Fuel Pipe Flare Nut And Bolt With Torque Specifications
G16700450Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Flare nut - 29.5 N.m {3 kgf.m, 21.75 ft.lb}
2 Bolt - 9.5 N.m {97 kgf.cm, 84 in.lb}
3 High pressure fuel pipe Replacement part -
