HO2S removal note

WARNING: This page is about a different variant/trim than selected.

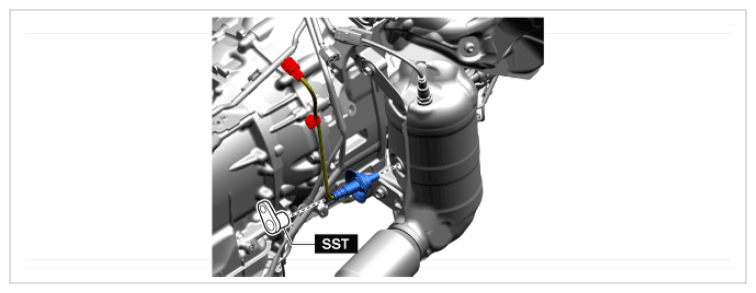

  1. Remove the HO2S using the SST as shown in the figure below.
G16700396Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
49 L018 001
