Remove Exhaust Camshaft Position Sensor

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.

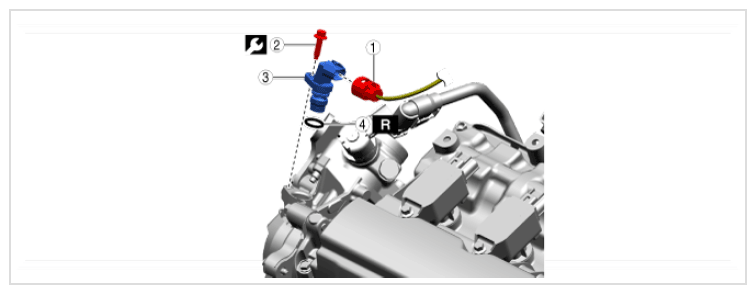

Fig 1: Exhaust Camshaft Position Sensor Bolt With Torque Specifications
G16700469Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Connector - -
2 Bolt - -
3 Exhaust camshaft position sensor - 9 N.m {92 kgf.cm, 80 in.lb}
4 O-ring Replacement part -
