Section 20 (Engine Mechanical (VIN A) (3 Of 6))
>>
Engine Disassembly/Assembly [PYUL]
>>
Remove Engine Mount (RH)
>>
Engine mount (RH) installation note
Engine mount (RH) installation note
WARNING:
This page is about a different variant/trim than selected.

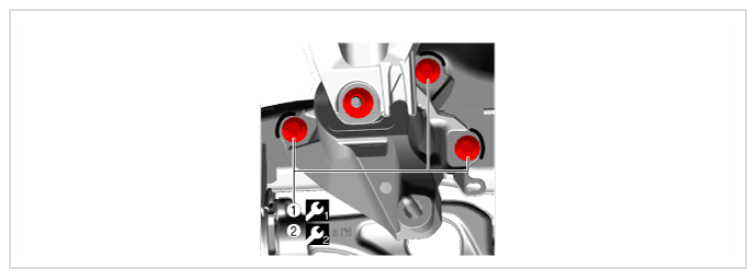

Install the bolts by aligning them with the alignment marks on the body side as shown in the figure below.
Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION
Symbol
Content
(1) (2)...
Servicing procedure
Temporarily tighten
50 N.m {5.1 kgf.m, 36.9 ft.lb}
