Bolt installation note

WARNING: This page is about a different variant/trim than selected.

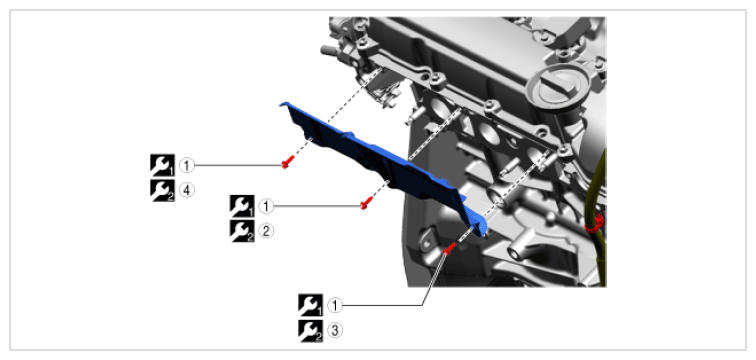

  1. Install the bolts as shown in the figure below.
G16700490Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
(1) (2)... Servicing procedure
Temporarily tighten
9.5 N.m {97 kgf.cm, 84 in.lb}
