Tie-rod end disconnection note
WARNING: This page is about a different variant/trim than selected.
- Disconnect the tie-rod end joint using the following procedure.
- Loosen the nut.

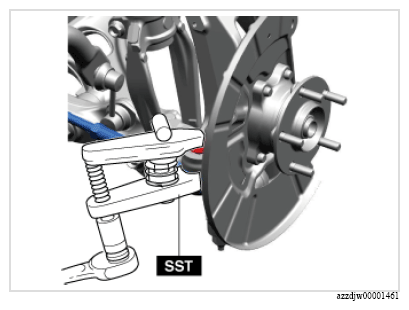

- SST Using the SST, disengage the tie-rod end from the steering knuckle.
- Figure also shows the left side (same for the right side).
 Courtesy of MAZDA MOTORS CORP.
|
SYMBOL AND CONTENT DESCRIPTION
| Symbol |
Content |
 |
49 T028 3A0 |
