Bolt removal note
WARNING: This page is about a different variant/trim than selected.
- Make alignment marks at the locations shown in the figure below.
- Figure also shows the left side (same for the right side).
 Courtesy of MAZDA MOTORS CORP.
|

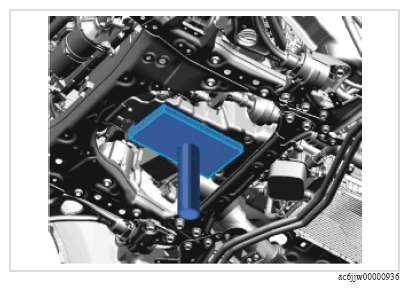

- Set and hold a jack to the engine oil pan
 Courtesy of MAZDA MOTORS CORP.
|
- Remove the bolts.
