Precautions for connecting the oil pump

WARNING: This page is about a different variant/trim than selected.
  1. Install the bolts shown in the figure below.

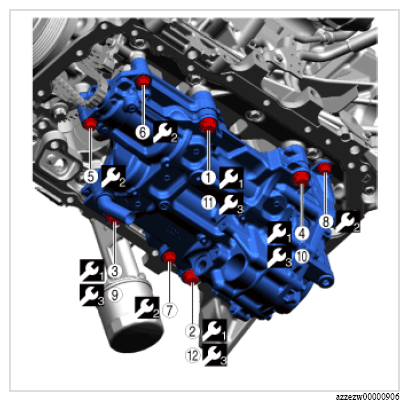

Fig 1: Oil Pump Bolts Tightening Sequence With Torque Specification
G16701753Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATION

Symbol Content
(1) (2)... Servicing procedure
19 N.m {1.95 kgf.m, 14 ft.lb}
23 N.m {2.35 kgf.m, 16.95 ft.lb}
33 N.m {3.35 kgf.m, 24.35 ft.lb}
