Front drive shaft removal note
WARNING: This page is about a different variant/trim than selected.
- Temporarily tighten a spare nut to the front drive shaft
- Tap the nut with a copper hammer and separate the front drive shaft from the axle.

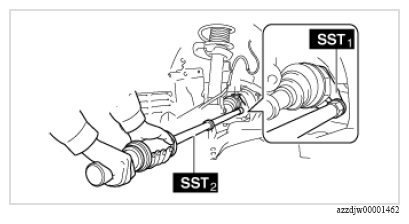

- Install SST (49 B025 017) to SST (49 B025 010).
- Disengage the front differential from the front drive shaft using the SST.
SYMBOL AND CONTENT DESCRIPTION
| Symbol | Content |
|---|---|
| 49 B025 010 | |
| 49 B025 017 |
