Remove Member Bracket (RH): Notes
WARNING: This page is about a different variant/trim than selected.

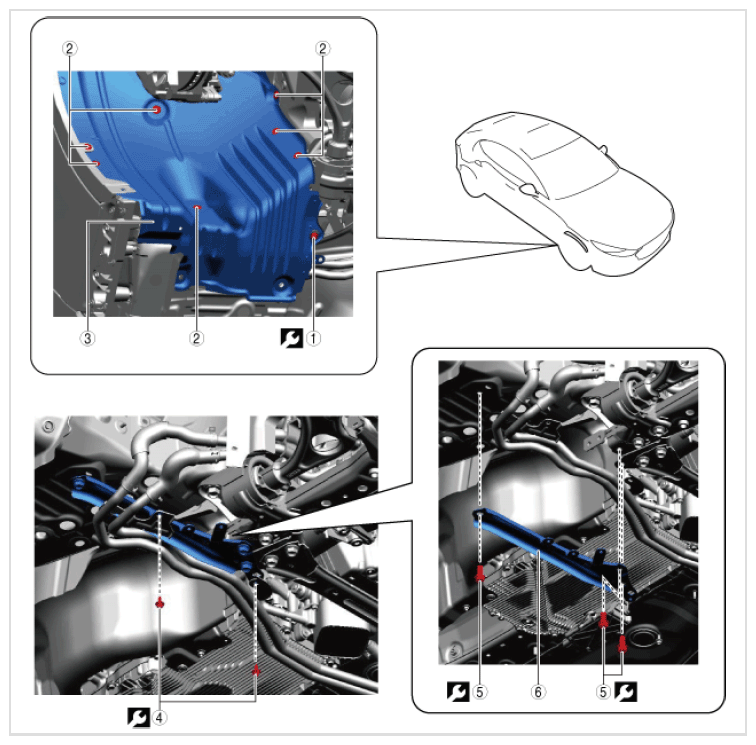

- Remove using the procedure shown in the figure below.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | |
|---|---|---|
| 1 | Bolt | 11 N.m {110 kgf.cm, 95 in.lbf} |
| 2 | Fastener | - |
| 3 | Front mudguard (RH) (See Partially peeling back front mudguard (RH) note ). |
- |
| 4 | Bolt | 11 N.m {110 kgf.cm, 95 in.lbf} |
| 5 | Bolt | 82 N.m {8.35 kgf.m, 60.35 ft.lb} |
| 6 | Member bracket (RH) | - |
