Front propeller shaft installation note

WARNING: This page is about a different variant/trim than selected.

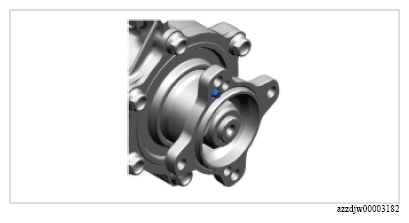

  1. Rotate the companion flange so that the pin is positioned at the top.
    G16701608Courtesy of MAZDA MOTORS CORP.
  2. Align the front propeller shaft with the companion flange pin and install.
    G16701609Courtesy of MAZDA MOTORS CORP.
  3. After temporarily tightening bolt C, completely tighten it.
  4. After temporarily tightening bolt B, completely tighten it.
  5. Completely tighten bolt A.
