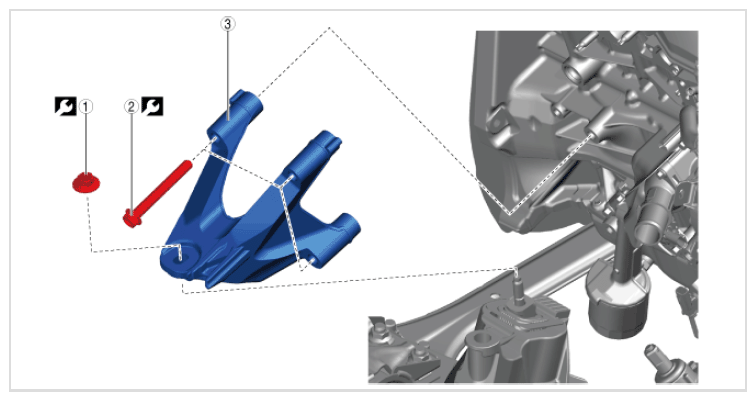

Remove Engine Mount Bracket (RH): Notes
WARNING: This page is about a different variant/trim than selected.
- Remove in the order indicated in the table.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | |
|---|---|---|
| 1 | Nut (See LOCKNUT REMOVAL NOTE ) |
98 N.m {10 kgf.m, 72.45 ft.lb} |
| 2 | Bolt | 67.5 N.m {6.85 kgf.m, 49.6 ft.lb} |
| 3 | Engine Mount Bracket (RH) | - |
