Section 16 (Engine Lubrication System (VIN A))
>>
Oil Cooler Removal/Installation [PYUL]
>>
Remove Engine Mount (RH)
>>
Engine mount (RH) installation note
Engine mount (RH) installation note
WARNING:
This page is about a different variant/trim than selected.
Install the bolts by aligning them with the alignment marks on the body side as shown in the figure below.

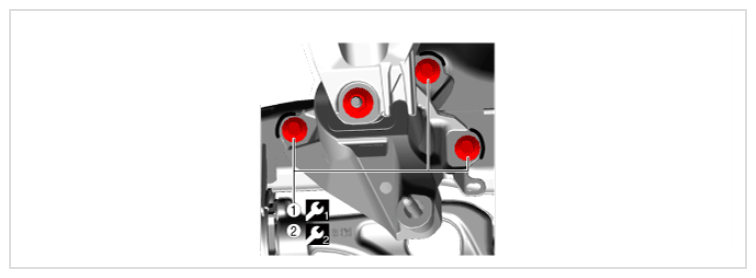

Fig 1: Engine Mount (RH), Bolt And Nut With Torque Specification
Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATION
Symbol
Content
(1) (2)...
Servicing procedure
Temporarily tighten
50 N.m {5.1 kgf.m, 36.9 ft.lb}
