Bolt removal note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the SST using the procedure shown in the figure below.

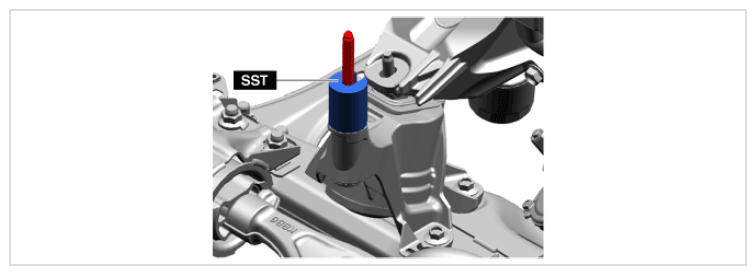

    G16691422Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    49 JP01 1A0
  2. Place alignment marks at the positions shown in the figure below so that they can be assembled to the same positions as before removal.

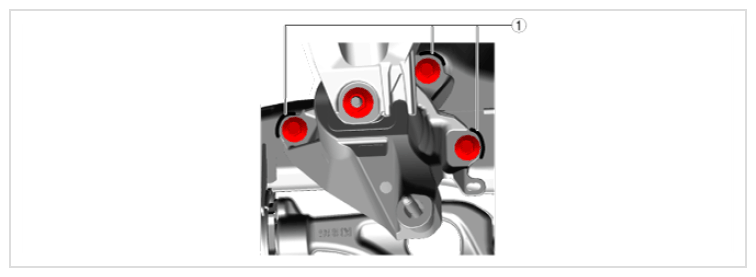

    G16691423Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    1. Alignment mark
  3. Remove the bolt.
