Install Oil Pan Drain Plug
WARNING: This page is about a different variant/trim than selected.

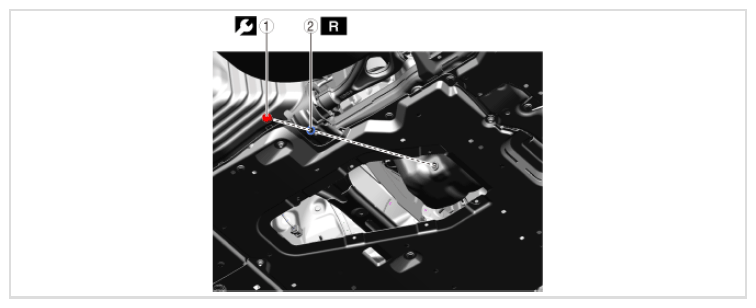

- Install in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP. TIGHTENING TORQUE SPECIFICATION
| Step |
Part name |
 |
| 1 |
Oil pan drain plug - |
35.5 N.m {3.6 kgf.m 6.05 ft.lb} |
| 2 |
Gasket Replacement part |
- |
