Install Oil Filler Cap

WARNING: This page is about a different variant/trim than selected.
  1. Install in the order indicated in the table.

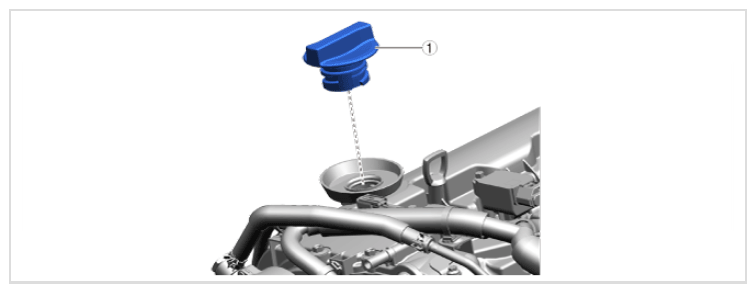

G16691431Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Oil filler cap
(See OIL FILLER CAP INSTALLATION NOTE )
