Remove The Front Crossmember Component: Notes
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- There is risk of damaging the part. Perform the procedure with the radiator component secured to the body with rope.
NOTE:
- After installation, check wheel alignment and make adjustments if necessary.
- Remove using the procedure shown in the figure below.

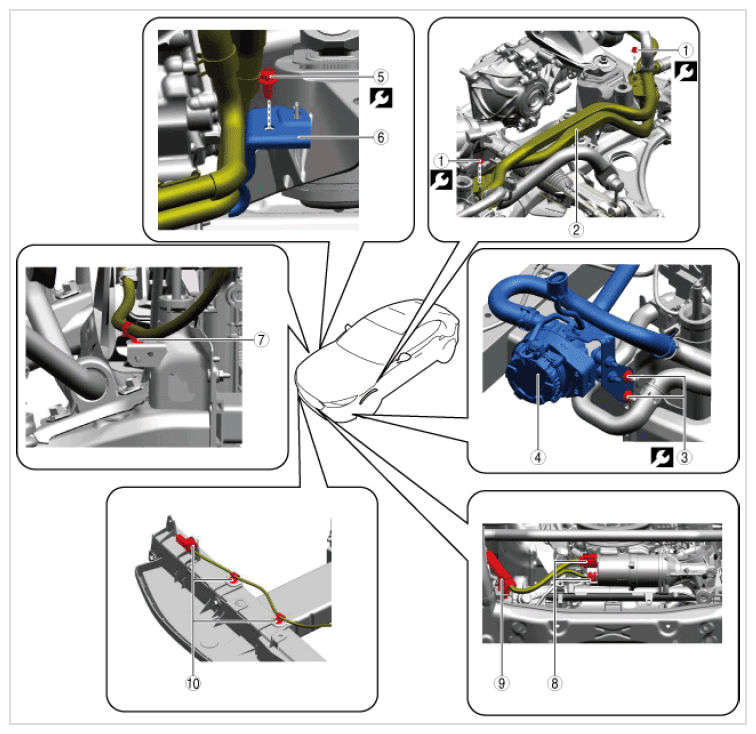

Step 1
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | Applicable condition | |
|---|---|---|---|
| 1 | Nut | - | 9.5 N.m {95 kgf.cm, 82 in.lbf} |
| 2 | Water pipe and hose | - | - |
| 3 | Nut | - | 9.5 N.m {95 kgf.cm, 82 in.lbf} |
| 4 | Electric water pump No. 1 | - | - |
| 5 | Bolt | T3 | 22 N.m {2.25 kgf.m, 16.25 ft.lb} |
| 6 | Water pipe and hose | T3 | - |
| 7 | Wiring harness clip | - | - |
| 8 | Connector | - | - |
| 9 | Wiring harness clip | - | - |
| 10 | Wiring harness clip (See Wiring harness clip removal note ). |
Vehicles with active air shutter | - |
Step 2
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | ||
|---|---|---|---|
| 1 | Nut | - | 138 N.m {14.05 kgf.m, 101.75 ft.lb} |
| 2 | Tie-rod end (See Tie-rod end disconnection note ). |
- | - |
| 3 | Nut | - | 74.5 N.m {7.6 kgf.m, 55 ft.lb} |
| 4 | Bolt | - | - |
| 5 | Nut | - | 158 N.m {16.15 kgf.m, 116.7 ft.lb} |
| 6 | Damper fork (See Damper fork installation note ). |
- | - |
| 7 | Joint bolt (See Joint bolt installation note ). |
Replacement part | 29 N.m {2.95 kgf.m, 21.4 ft.lb} |
| 8 | Intermediate shaft | - | - |
| 9 | Bolt (See Bolt removal note ). (See Bolt installation note ). |
- | 50 N.m {5.1 kgf.m, 36.9 ft.lb} |
| 10 | Front crossmember component (See Front crossmember component removal note ). |
- | - |
