Section 16 (Engine Lubrication System (VIN A))
>>
Engine Oil Solenoid Valve Removal/Installation [PYUL]
>>
Remove Passenger Side Strut Tower Bar
>>
Wiring harness clip removal note
Wiring harness clip removal note
WARNING:
This page is about a different variant/trim than selected.

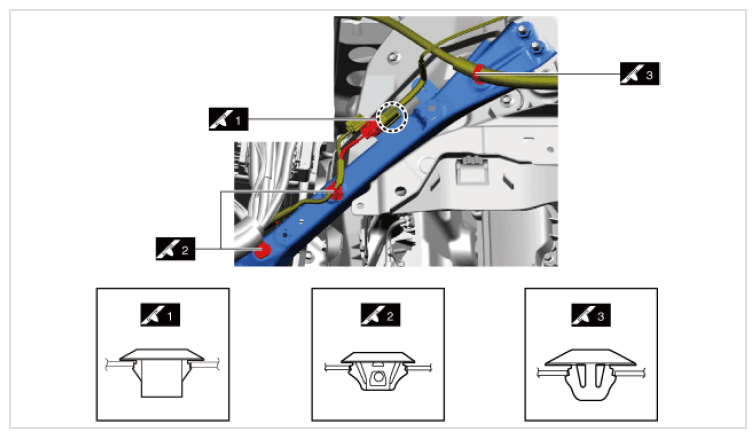

Remove the wiring harness clips as shown in the figure below.
Courtesy of MAZDA MOTORS CORP.
