Front drive shaft removal note

WARNING: This page is about a different variant/trim than selected.

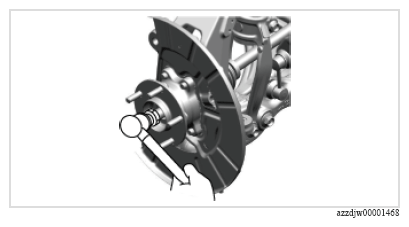

  1. Temporarily tighten a spare nut to the front drive shaft
  2. Tap the nut with a copper hammer and separate the front drive shaft from the axle.
G16699601Courtesy of MAZDA MOTORS CORP.
