Engine mount (LH) installation note

WARNING: This page is about a different variant/trim than selected.

Align the alignment marks on the body side with the engine mount (LH) and install the bolts and nuts as shown in the figure below.

If the alignment marks have deviated, align them by slightly moving the engine.

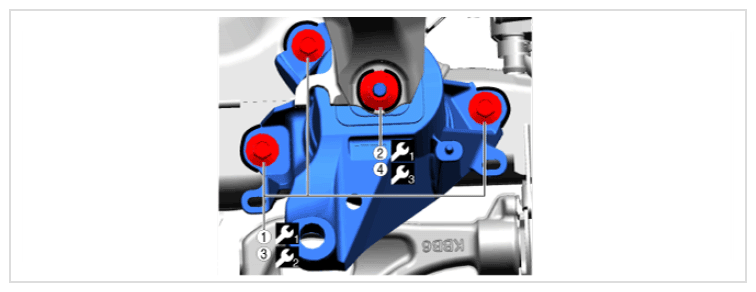

Fig 1: Engine Mount (LH) Bolts And Nuts Tightening Sequence With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Fig 2: SST Nut With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Symbol	Content
	49 JP01 1A0
	83 N.m {8.45 kgf.m, 61.05 ft.lb}
