Lowering engine component 50 mm {2.0 in} note

WARNING: This page is about a different variant/trim than selected.

WARNING:

Due to a difference in height between the X mark and the front crossmember, verify that they make contact at the same time.

Place the X mark on the front crossmember in front of the engine lifter.

Courtesy of MAZDA MOTORS CORP.

COMPONENT OPERATIONS

Component no	Refer to
1	X mark

Place impact-absorbing material in the area where the front crossmember makes contact.
WARNING:
- At this time, the platform of the engine lifter must be higher than the handle. If it is at a lower position, it may contact the vehicle and cause damage.
Raise the engine lifter to a position 20 mm {0.79 in} lower than its highest position.
WARNING:
- Lower while checking the area around the engine, such as whether an excessive load is applied lengthwise.
Slowly lower the lift until the engine component rests on the engine lifter.
When removing the front crossmember bolts, raise the engine lifter to reduce the load applied to the bolts.
Remove the front crossmember bolts.
CAUTION:
- If only the bolts in one area are removed, a load may be applied to the remaining bolts. Therefore, remove the bolts evenly.
Courtesy of MAZDA MOTORS CORP.

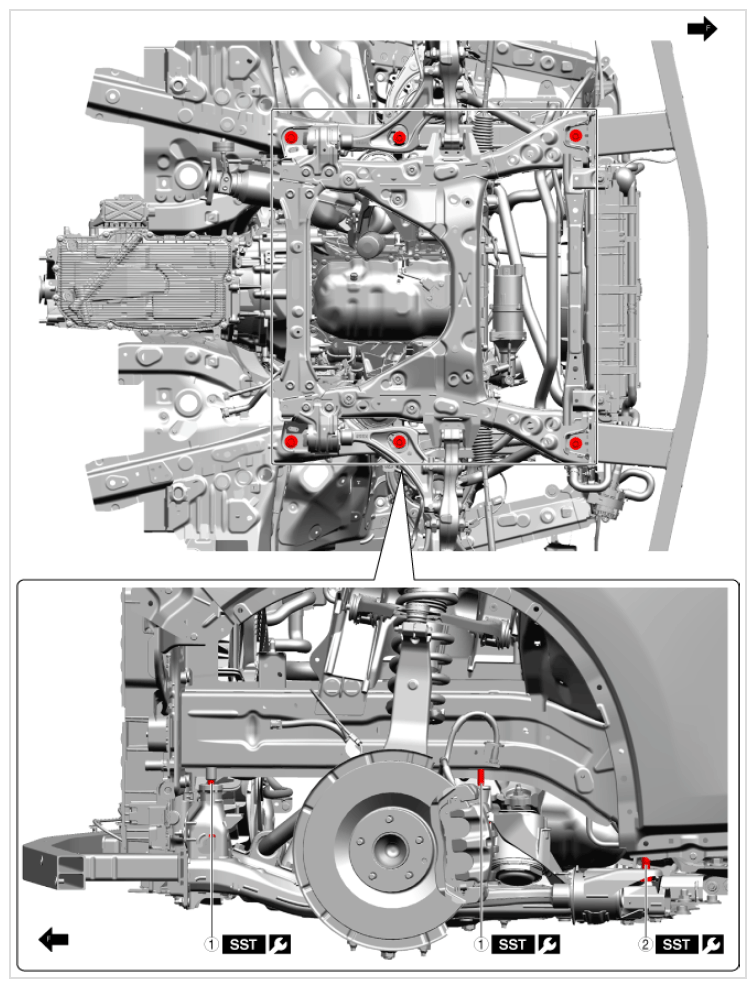

Temporarily tighten the SSTs shown in the figure below.

Fig 1: Front Crossmember SST Bolts Tightening Sequence With Torque Specification

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Set the SSTs in the space created by slightly lowering the front crossmember.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
	49 JP01 1A0

Tighten the SSTs in the order shown in the figure below.

Fig 2: Front Crossmember SST Bolts Tightening Sequence With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION
