Remove Service Hole Cover

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.
G16691141Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Step Part name
1 Screw
2 Fastener
3 Service hole cover


  1. Remove in the order indicated in the table.

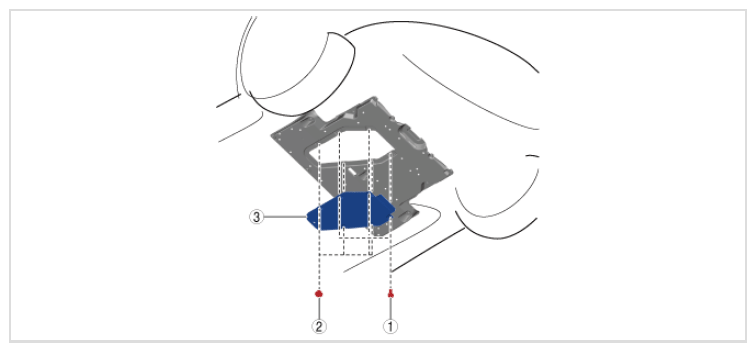

G16691146Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Screw
2 Fastener
3 Service hole cover
