Remove Floor Under Cover (Right side)
WARNING: This page is about a different variant/trim than selected.

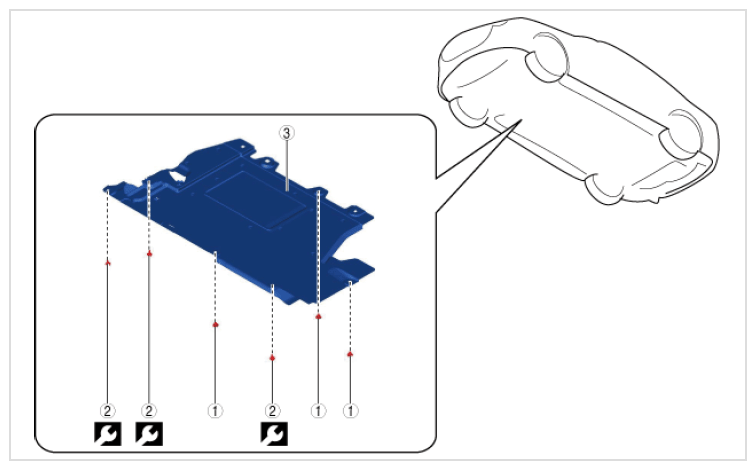

- Remove using the procedure shown in the figure.
Courtesy of MAZDA MOTORS CORP. TIGHTENING TORQUE SPECIFICATIONS
| Step |
Part name |
 |
| 1 |
Fastener |
- |
| 2 |
Bolt |
11 N.m {110 kgf.cm, 95 in.lbf} |
| 3 |
Floor under cover |
- |
