Remove Insulator (Rear): Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.

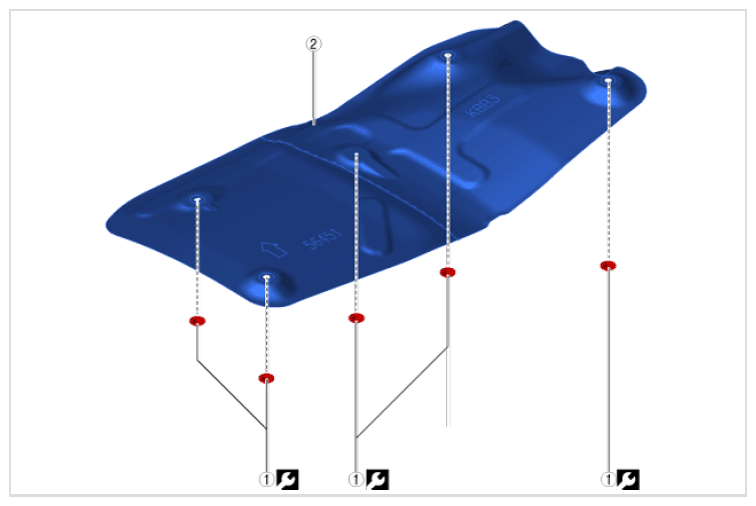

Fig 1: Insulator (Rear) Nuts With Torque Specifications
G16702981Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Nut 9.5 N.m {95 kgf.cm, 82 in.lbf}
2 Insulator (rear)
(See INSULATOR (REAR) INSTALLATION NOTE )		 -
