Nut and bolt installation note

WARNING: This page is about a different variant/trim than selected.

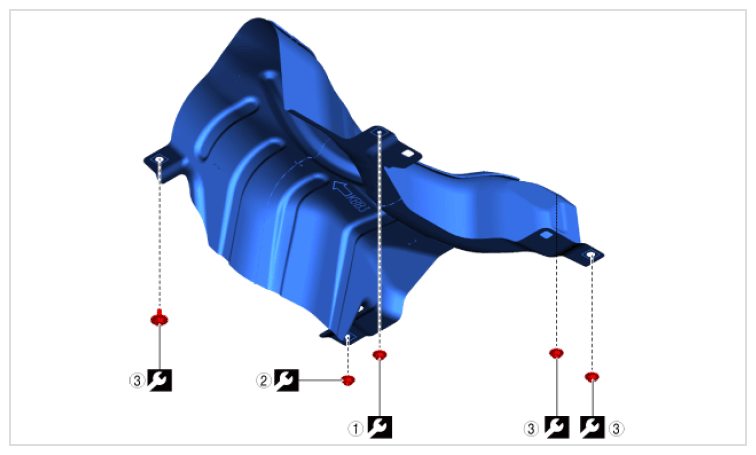

Fig 1: Insulator (Front No. 1) Bolt And Nuts Tightening Sequence

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Symbol	Content
(1) (2)...	Servicing procedure
	9.5 N.m {95 kgf.cm, 82 in.lbf}
