Front over fender lower removal note

WARNING: This page is about a different variant/trim than selected.

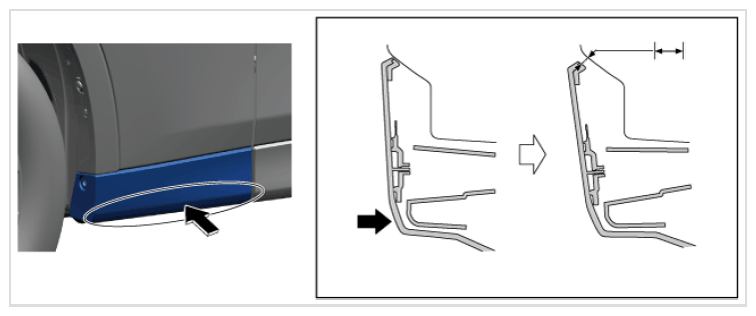

Press the front over fender lower in the direction of the arrow (1) shown in the figure to create a gap of approx. 3 mm {1 in} between the front over fender lower and the front fender.

The figure shows the left side (same as right side).

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
	Approx. 3 mm {0.1 in}

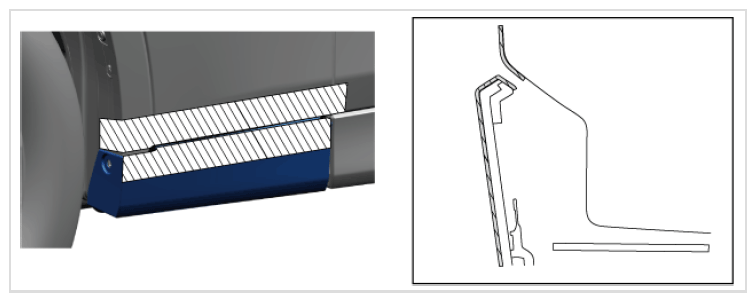

Apply protective tape to the location shown in the figure to prevent scratches or damage.

The figure shows the left side (same as right side).

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
	Protective tape attachment positions

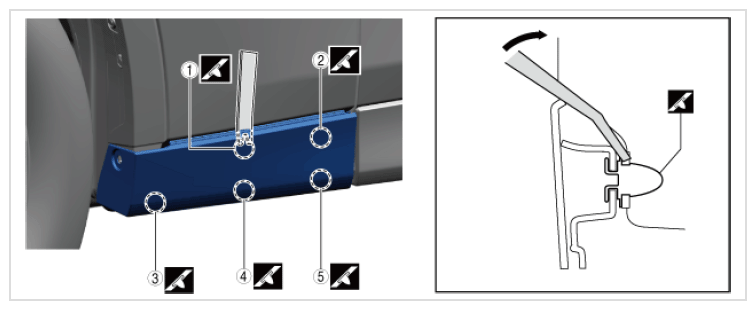

Insert a remover tool into the position shown in the figure, move it in the direction of the arrow, and then detach the clip from the body.

The figure shows the left side (same as right side).

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
	50 mm {2.0 in}
	25 mm {0.98 in}

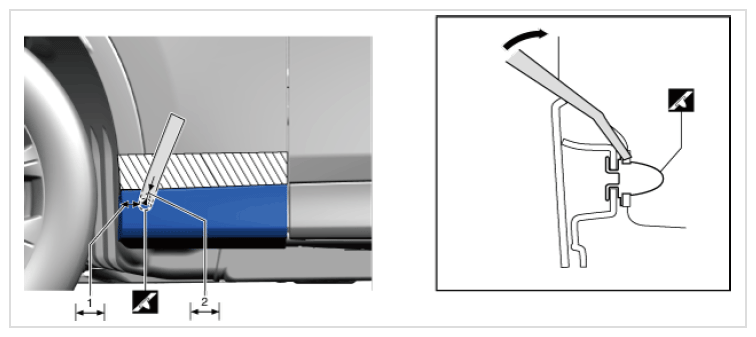

Detach the clips from the body using a remover tool.

The figure shows the left side (same as right side).

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
(1) (2)...	Servicing procedure

Remove the front over fender lower.
