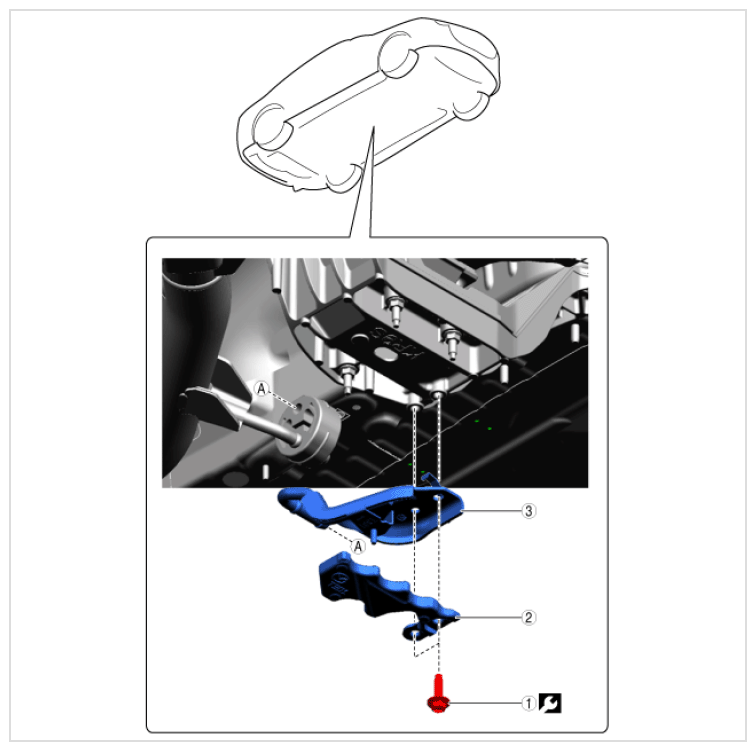

Remove Muffler Hanger Bracket
WARNING: This page is about a different variant/trim than selected.
- Remove in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP. TIGHTENING TORQUE SPECIFICATIONS
| Step |
Part name |
 |
| 1 |
Bolt |
22 N.m {2.25 kgf.m, 16.25 ft.lbf} |
| 2 |
Weight |
- |
| 3 |
Muffler hanger bracket |
- |
