Intake air guide (upper) removal note
WARNING: This page is about a different variant/trim than selected.

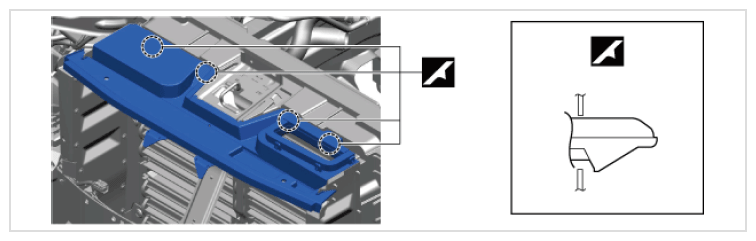

- Remove the intake air guide (upper) as shown in the figure below.
 Courtesy of MAZDA MOTORS CORP.
|
- Verify that the intake air guide (upper) is inserted into the seal plate and engaged.
- The figure shows the left side (same as right side).
 Courtesy of MAZDA MOTORS CORP.
|
