Insulator (middle No. 2) installation note

WARNING: This page is about a different variant/trim than selected.

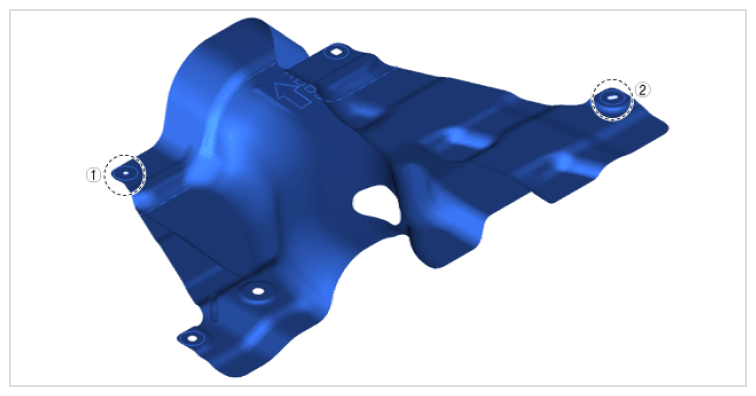

  1. Install the insulator (middle No. 2) as shown in the figure below.
G16702886Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
(1) (2)... Servicing procedure
