Remove Insulator (Front No. 3)

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.

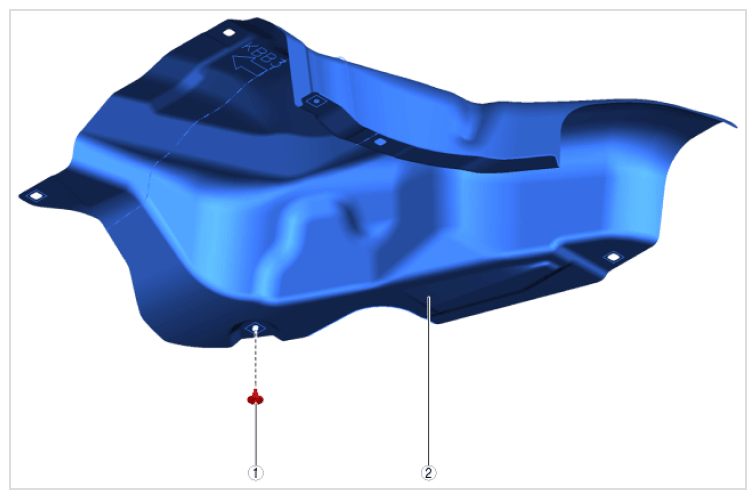

G16702882Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Fastener
2 Insulator (front No. 3)
