Remove Insulator (Front No. 2): Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.

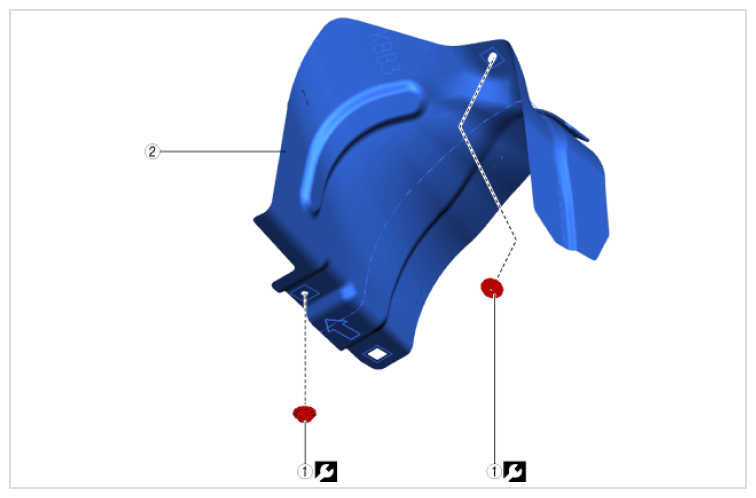

Fig 1: Insulator (Front No. 2) Nut With Torque Specifications
G16702880Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Nut
(See Insulator (front No. 2) and nut installation note ).		 9.5 N.m {95 kgf.cm, 82 in.lbf}
2 Insulator (front No. 2)
(See Insulator (front No. 2) and nut installation note ).		 -
