Front splash shield No. 2 removal note

WARNING: This page is about a different variant/trim than selected.

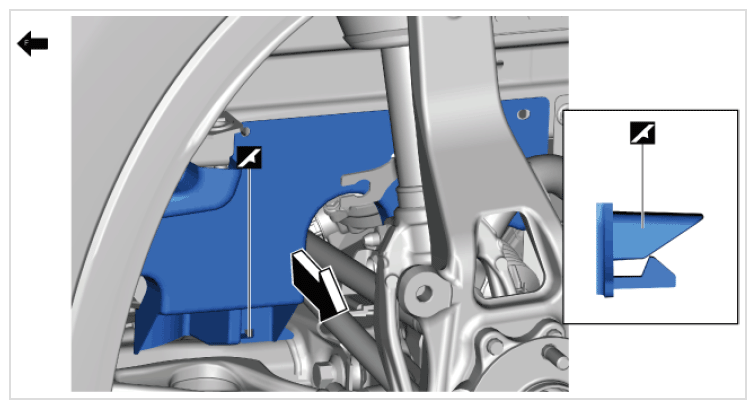

  1. Move the front splash shield No. 2 in the direction of the arrow shown in the figure, remove the front splash shield No. 2 tab from the engine mount.
G16702851Courtesy of MAZDA MOTORS CORP.
