Remove Driver Side Front Splash Shield No. 1
WARNING: This page is about a different variant/trim than selected.

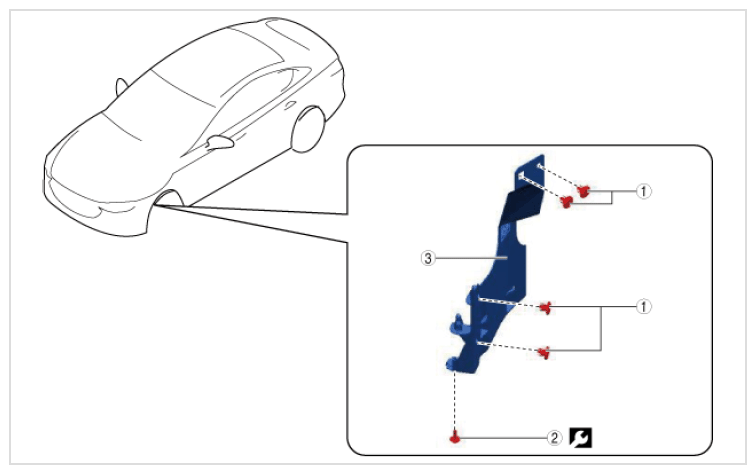

- Remove using the procedure shown in the figure.
- The figure shows the left side (same as right side).
Courtesy of MAZDA MOTORS CORP. TIGHTENING TORQUE SPECIFICATIONS
| Step |
Part name |
 |
| 1 |
Fastener |
- |
| 2 |
Screw |
2 N.m {20 kgf.cm, 17 in.lbf} |
| 3 |
Front splash shield No. 1 |
- |
