Remove Driver Side Front Mudguard
WARNING: This page is about a different variant/trim than selected.

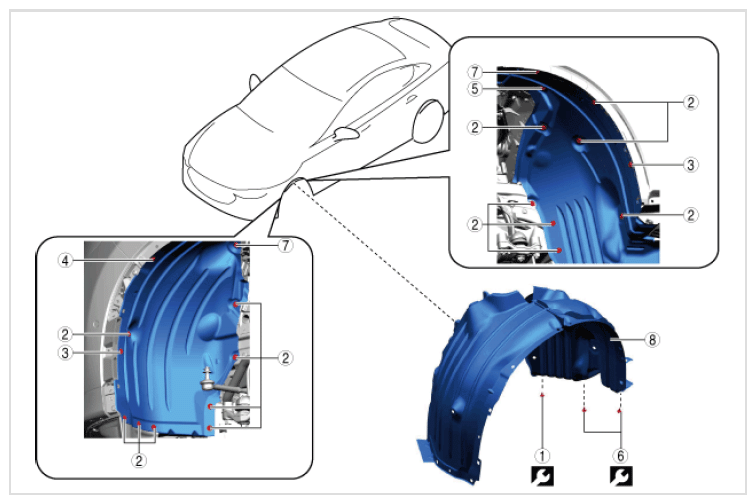

- Remove using the procedure shown in the figure.
- The figure shows the left side (same as right side).
TIGHTENING TORQUE SPECIFICATIONS
| Step | Part name | |
|---|---|---|
| 1 | Bolt | 11 N.m {110 kgf.cm, 95 in.lbf} |
| 2 | Fastener | - |
| 3 | Fastener | - |
| 4 | Fastener | - |
| 5 | Fastener | - |
| 6 | Bolt | 11 N.m {110 kgf.cm, 95 in.lbf} |
| 7 | Fastener | - |
| 8 | Front mudguard | - |
