Remove Cooling System Cap (Sub) (PYUL)

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.
G16702783Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Cooling system cap (sub)


  1. Remove in the order indicated in the table.

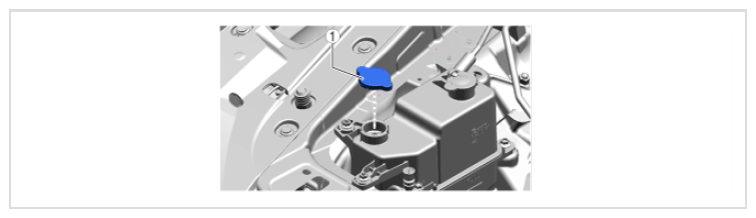

G16702943Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Cooling system cap (sub)
