e-SKYACTIV PHEV

WARNING: This page is about a different variant/trim than selected.

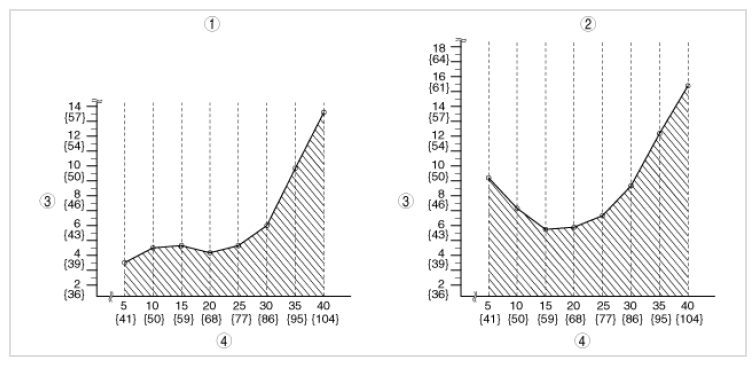

G16702967Courtesy of MAZDA MOTORS CORP.
COMPONENT OPERATIONS

Component no. Refer to
1 Center vent
2 Rear vent
3 Airflow temperature (°C {°F})
4 Ambient temperature (°C {°F})
