Drain Engine Coolant (Main)

WARNING: This page is about a different variant/trim than selected.

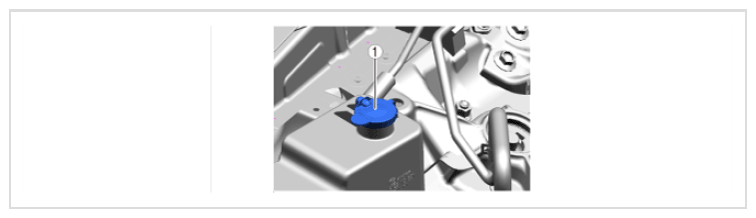

  1. Open the coolant reserve tank cap.
    G16702785Courtesy of MAZDA MOTORS CORP.
    COMPONENT OPERATIONS

    Component no. Refer to
    1 Coolant reserve tank cap
  2. Drain the engine coolant (main) from the coolant reserve tank.

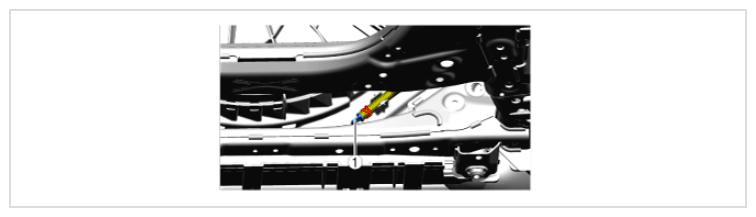

  3. Remove the drain plug (main) and drain the engine coolant (main).
    G16702786Courtesy of MAZDA MOTORS CORP.
    COMPONENT OPERATIONS

    Component no. Refer to
    1 Drain plug (main)
  4. Install the drain plug (main).
