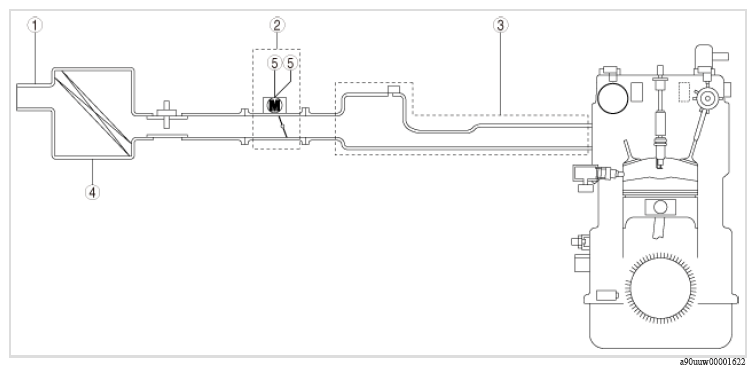

Intake-Air System Diagram

WARNING: This page is about a different variant/trim than selected.
G16702147Courtesy of MAZDA MOTORS CORP.
COMPONENT OPERATIONS

Component No. Refer to
1 Fresh-air duct
2 Throttle body
3 Intake manifold
4 Air cleaner
5 To PCM/ECM
