Engine Compartment

WARNING: This page is about a different variant/trim than selected.

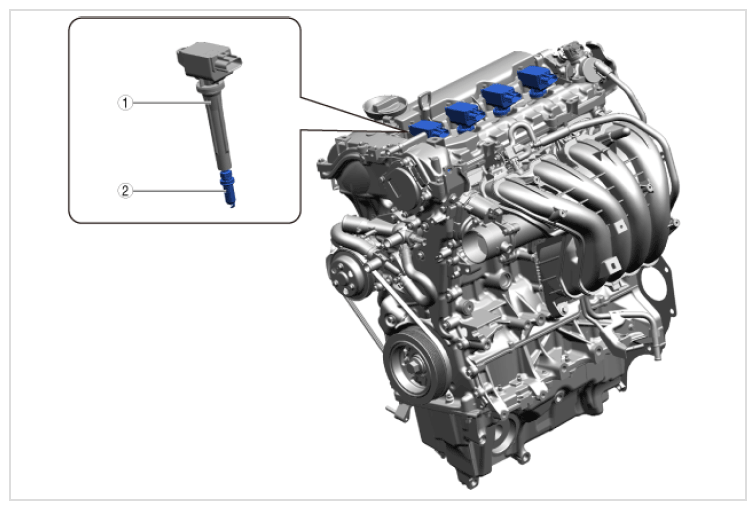

Fig 1: Ignition System Components Location - Engine Compartment
G16704444Courtesy of MAZDA MOTORS CORP.
IGNITION SYSTEM COMPONENT OPERATIONS

Component No. Refer to
1 Ignition coil
(See IGNITION COIL REMOVAL/INSTALLATION [PYUL] ).
(See IGNITION COIL INSPECTION [PYUL] ).
2 Spark plug
(See SPARK PLUG REMOVAL/INSTALLATION [PYUL] ).
(See SPARK PLUG INSPECTION [PYUL] ).
(See SPARK INSPECTION [PYUL] ).
