Remove Water Inlet Pipe
WARNING: This page is about a different variant/trim than selected.

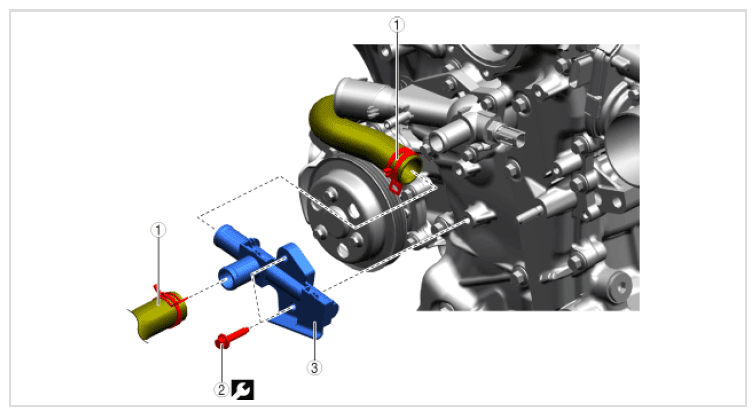

- Remove using the procedure shown in the figure below.
Courtesy of MAZDA MOTORS CORP. TIGHTENING TORQUE SPECIFICATIONS
| Procedure |
Part name |
 |
| 1 |
Hose |
- |
| 2 |
Bolt |
- |
| 3 |
Water inlet pipe |
9.5 N.m {97 kgf.cm, 84 in.lbf} |
