Remove Dipstick

WARNING: This page is about a different variant/trim than selected.

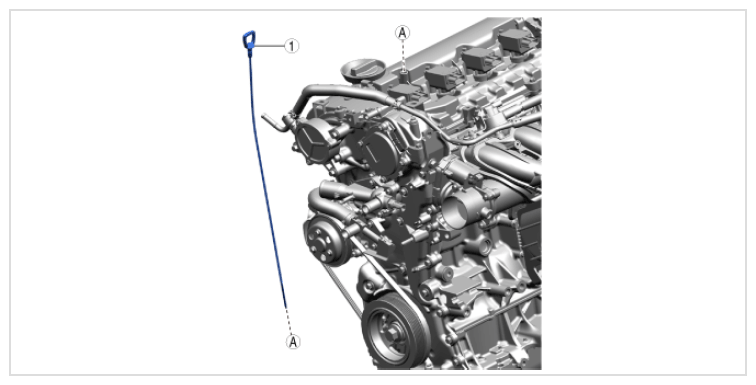

  1. Remove using the procedure shown in the figure below.
G16701955Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Procedure Part name
1 Dipstick
